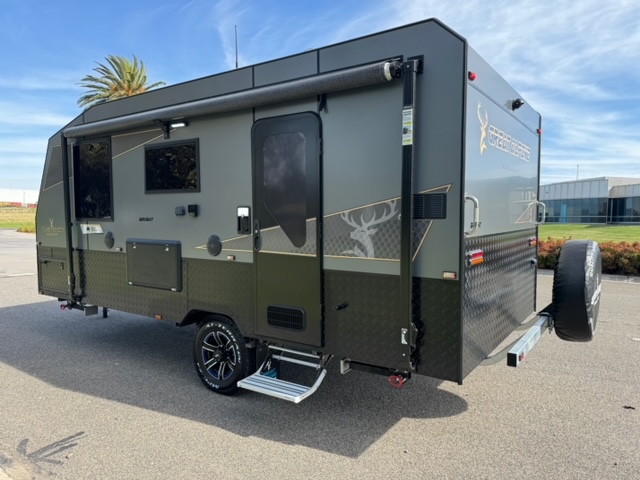

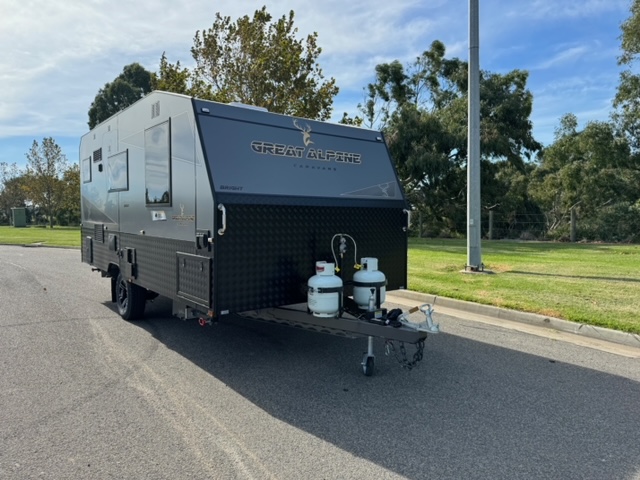

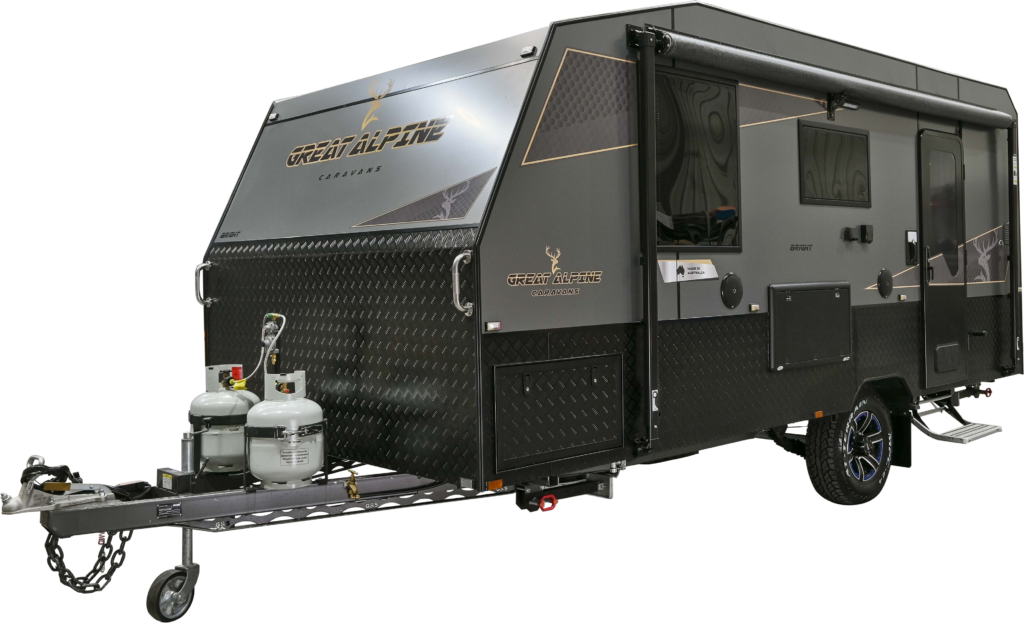

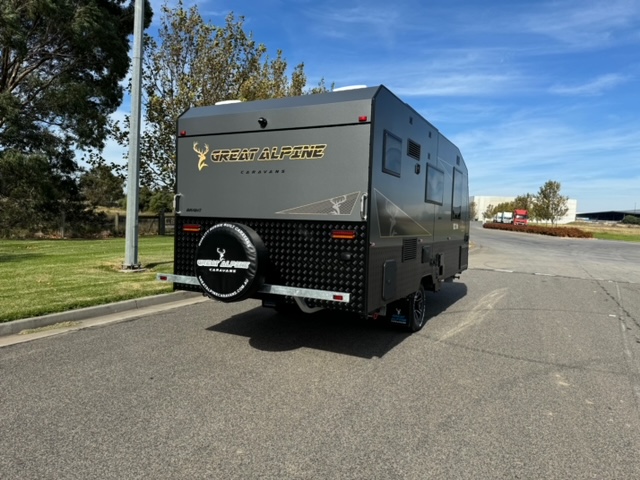

Great Alpine Bright 17 Ft Two Birth

Overview

This is a great model for people who are looking at traveling with a light compact touring van. It comes with all major features in a 17.10 ft caravan.

Get a Quote

Specification

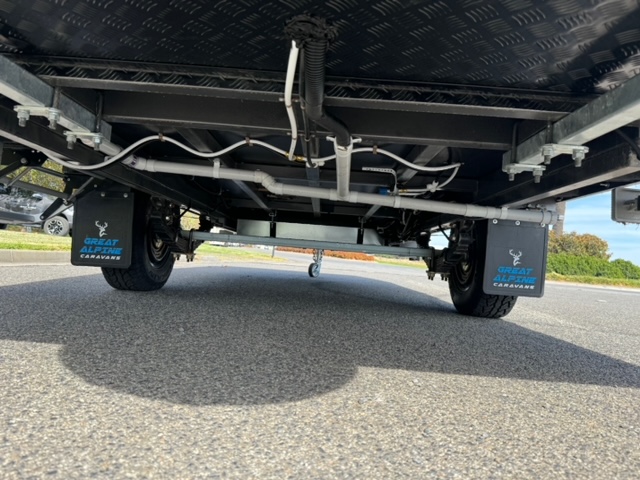

  • Supergal Boxed Chassis 4”
  • A-Frame
  •  2” riser
  •  Chassis-mounted checker plate battery boxes
  •  235 / 15” All Terrain tyres & rims
  •  Roller Rocker Suspension
  •  12” electric brakes on all wheels with breakaway unit
  • 50mm coupling with handbrake.
  • 2 x arm bumper
  • 1 x spare Tyre 15” matching alloy
  • Jacking points on chassis
  • Drop down legs.
  •  Jockey wheel
  • Mudflaps
  • 2 x safety chains

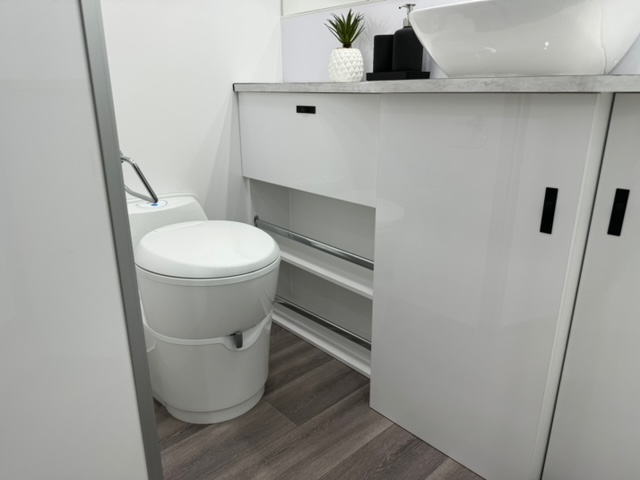

  • Thetford swiveling toilet & cassette.
  •  External shower
  • External gas bayonet
  • 2 x 95-liter water tanks

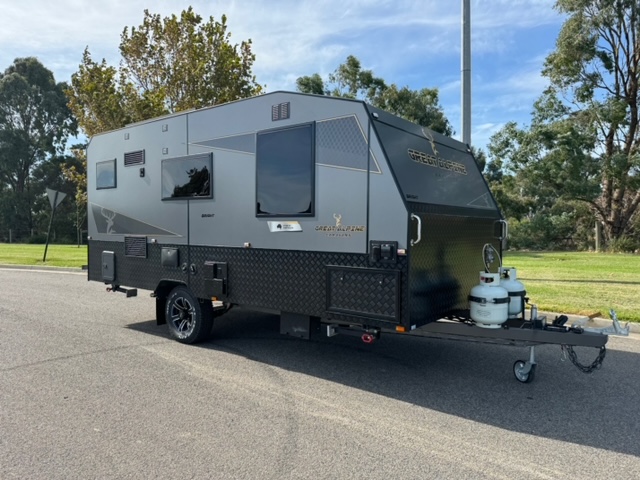

  • 2 x 9 KG gas bottles on A-frame
  • 28-liter Swift gas & electric hot water service
  • 2 x Lockable water filler Mains pressure inlet
  • Wastewater to a common outlet
  • Tap on A-frame Filtered Water
  • 3-way filtered water
  • 12V water pump

  • Full Swift mini grill 3 gas & 1 electric plus
  • 12V range hood with light and fan
  • NCE 20-liter Microwave
  • Furrion stereo
  • 1 x 100 AMP Lithium Battery
  • 1 x 200w roof-mounted solar panel

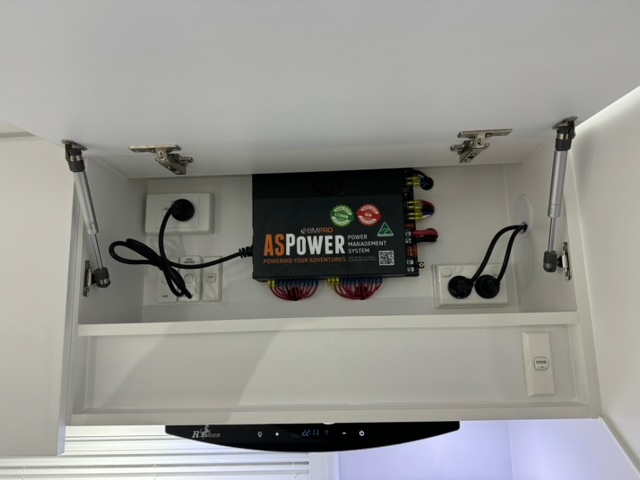

  • Victron Charger with Victron Components
  • 178-liter Thetford compressor fridge
  • 12-pin flat trailer plug with fridge operation
  • 12v Anderson plug for accelerated charging
  • Power points throughout
  • 24” Google Tv
  • Gree Air A/c 3.5Kw
  • 2 x 12v exhaust fans to shower and toilet.
  • 2-way electrical circuit – master bedroom to toilet

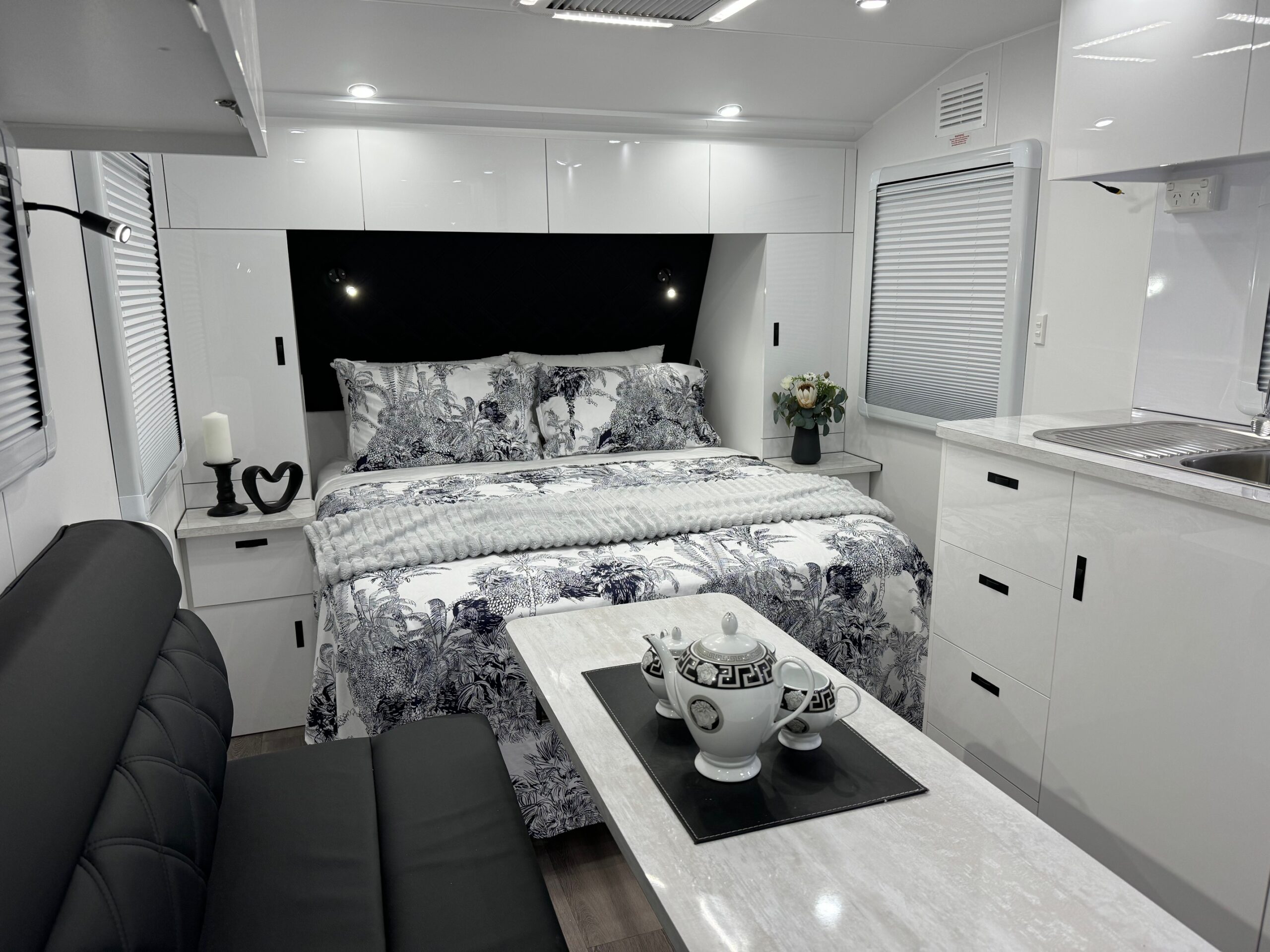

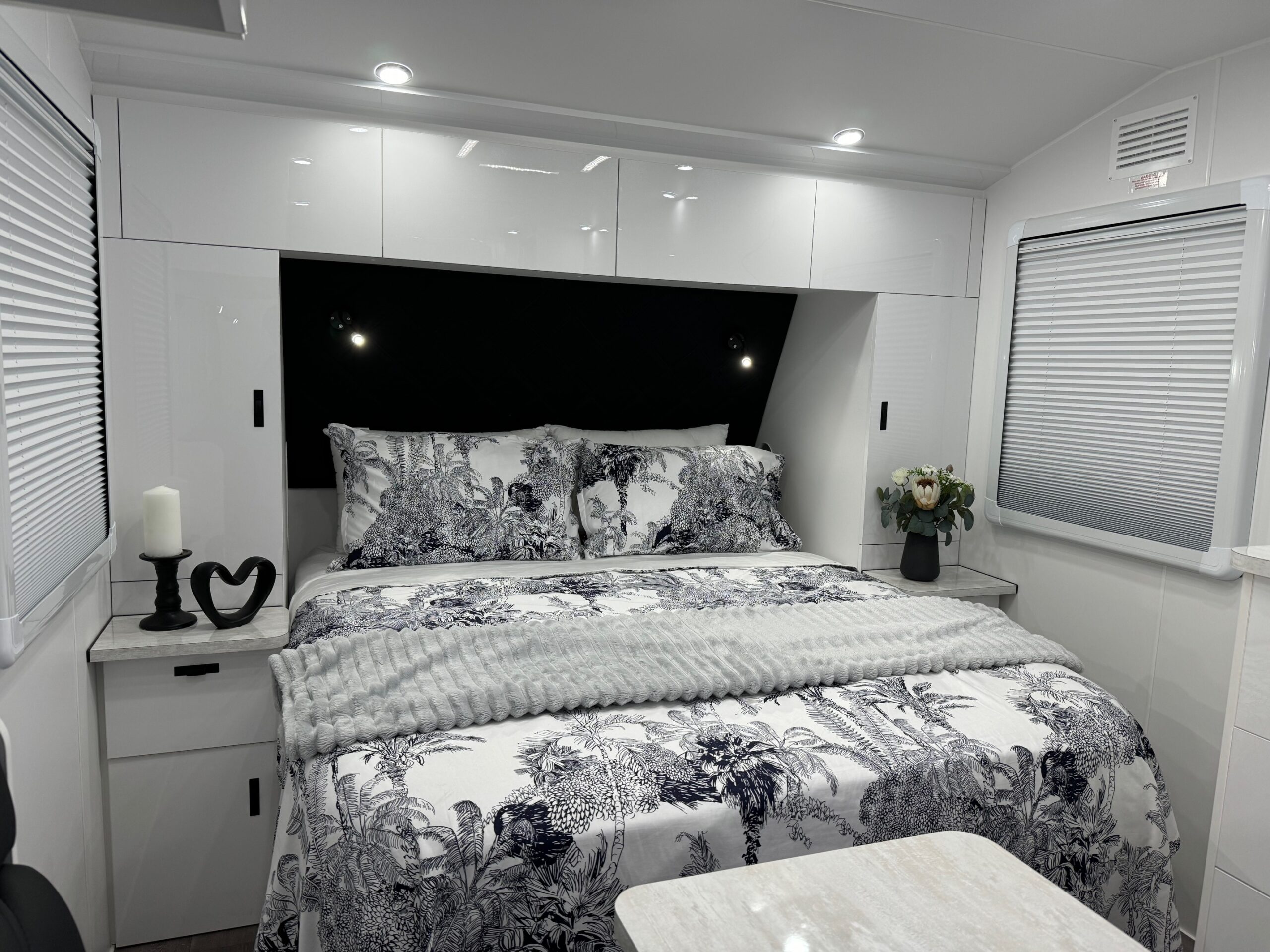

  • RV Queen size bed with innerspring mattress (6’2” x 5’)
  • Full Ensuite with separate shower and toilet
  • Straight seating in soft vinyl with hand-stitched upholstery
  • Double-glazed windows with inbuilt privacy & fly screens
  • 2 x LED skylights (Toilet and shower)

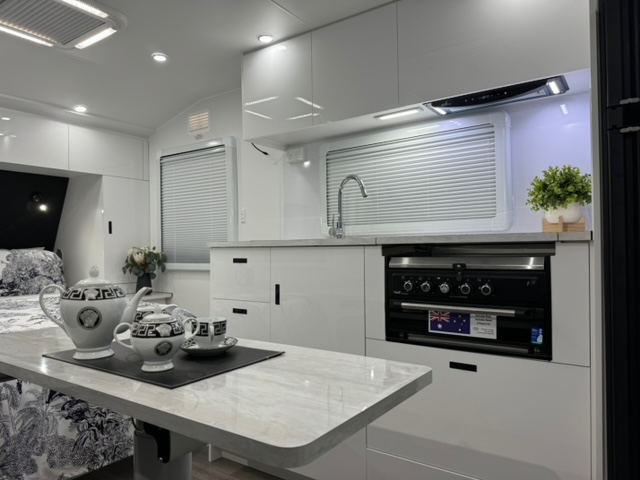

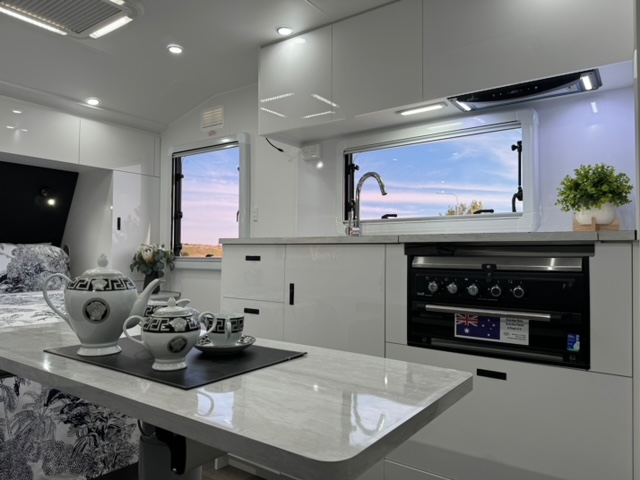

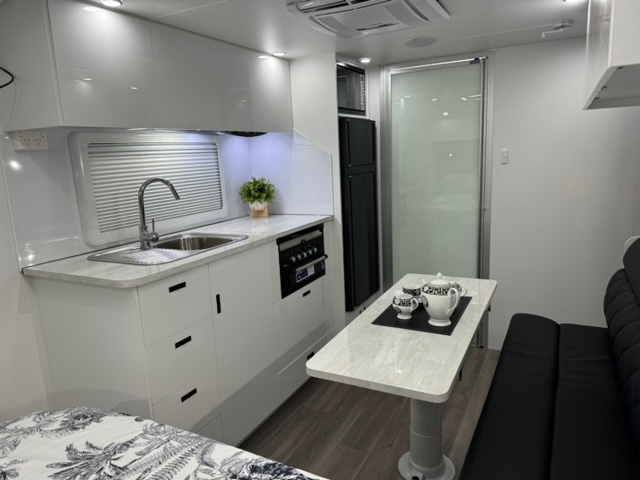

  • Fully integrated kitchen with ball-bearing runner drawers
  • Push button catches and top doors hidden locks.
  • Bathroom pack (towel rail & toilet roll holder)
  • Crome tapware

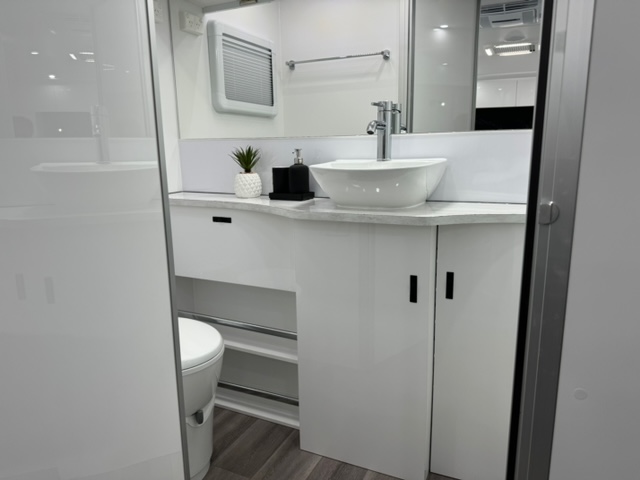

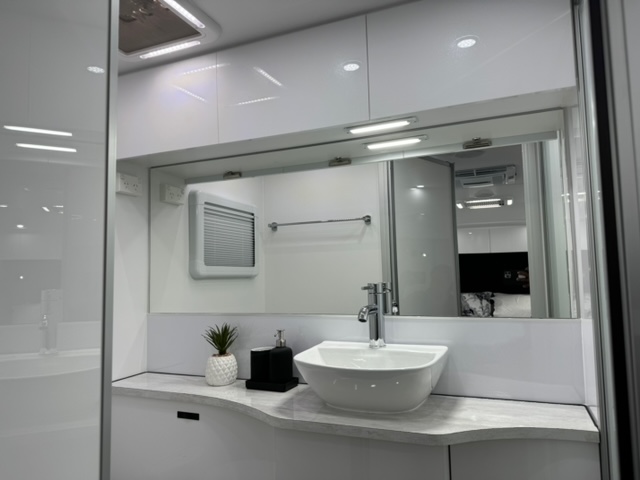

  • Ceramic ensuite vanity basin Internal
  • LED lights Reading lights to bed and dinette.
  • Queen bed on struts with underneath storage.
  • TV swivel bracket
  • Laminated bench tops
  • Smoke detector and fire extinguisher.
  • Queen Bed Side Pigeonholes
  • USB Points to Queen Bed and Dinette
  • Slideout pantry

  • 12ft Roll out awning (with center support bracket)
  • Triple lock door with fly screen

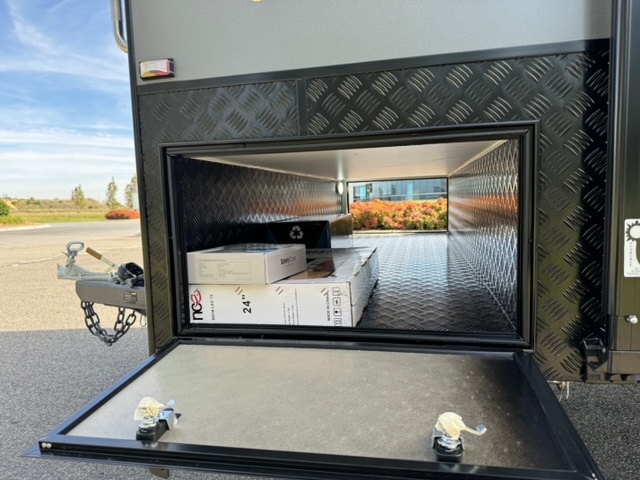

  • Large, galvanized tunnel boot
  • Reverse camera with 6” monitor
  • Double glazed windows
  • 1 x LED skylight hatches
  • External picnic table
  • Winegard Sensor antenna
  • 2 x external LED lights
  • LED taillights
  • External speakers
  •  External 240V point
  •  External 12V point
  •  Pull Out Step
  • External door handle light
  • Chrome grab handles

  • Aluminium Frame
  • One-piece fiberglass roof
  • Honeycomb flooring.
  • 560mm high side black checker plate
  • Allycom panel
  • Insulated walls and roof
  • Aluminum H frame to A/C for added strength.
  • 15.5mm white matt ply CNC cut furniture throughout with solid timber (PVC Base)
  • One-piece molded shower
  • Laminated panel inside shower partition (no ply)
  • All furniture is stapled and screwed for extra strength.
  • 3mm PVC Ply internal walls and roof

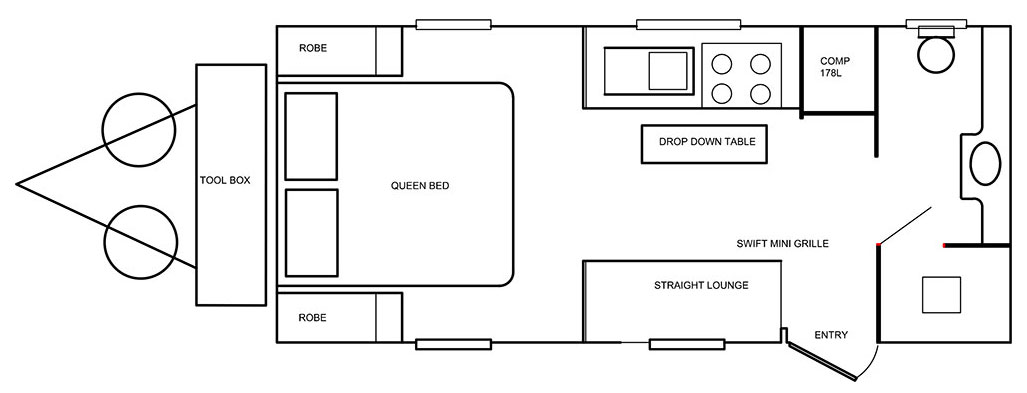

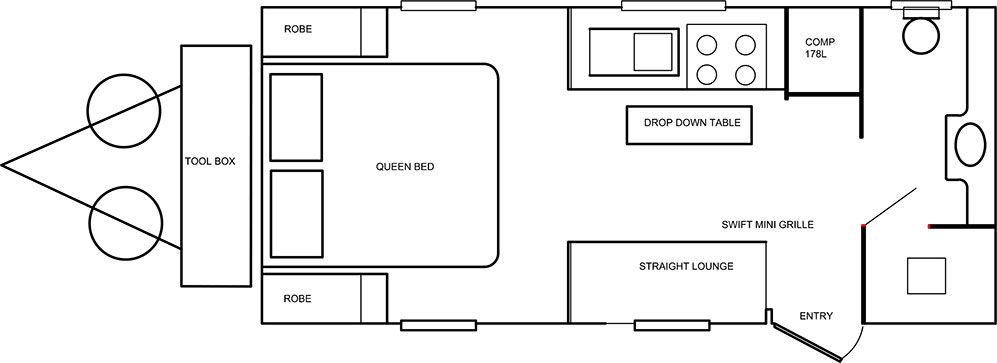

Floor Plans



Standard Touring Van Weights & Dimensions:

  • CABIN LENGTH: 17 FT
  • OVERALL LENGTH: 6.5M
  • WIDTH: 7.8FT (2.4M)
  • HEIGHT: 9.67FT (2.95M)
  • INTERNAL HEIGHT: 1975mm
  • GTM: 2020 KG (APP)
  • TARE: 1680 KG (APP)
  • ATM: 2200 KG (APP)
  • TOW BALL: 180 KG (APP)
  • PAYLOAD: 400 KG (APP)
