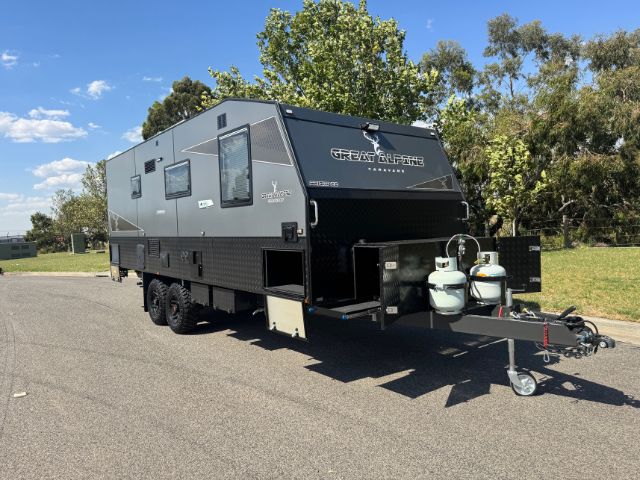

Bright 22 Ft Family Double Door

Overview

Get a Quote

Specification

  • Supergal Boxed Chassis 6”
  • Extended A-Frame
  • 245 / 16 all-terrain tires
  • 2” riser
  • Standard checker plate

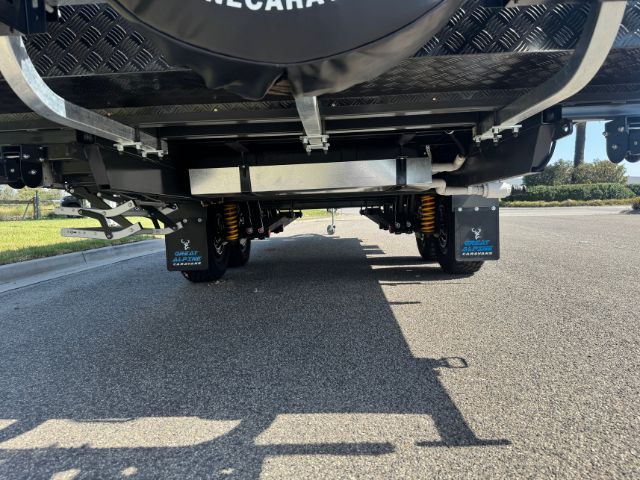

  • Off Road Independent Suspension
  • Do 35 Hitch
  • 12” electric brakes on all wheels with breakaway unit
  • 3 x arm bumper
  • 1 x spare tire 16” matching alloy
  • Jacking points on chassis
  • Drop down legs.
  • Jockey wheel
  • Standard checker plate
  • Mudflaps
  • 2 x safety chains

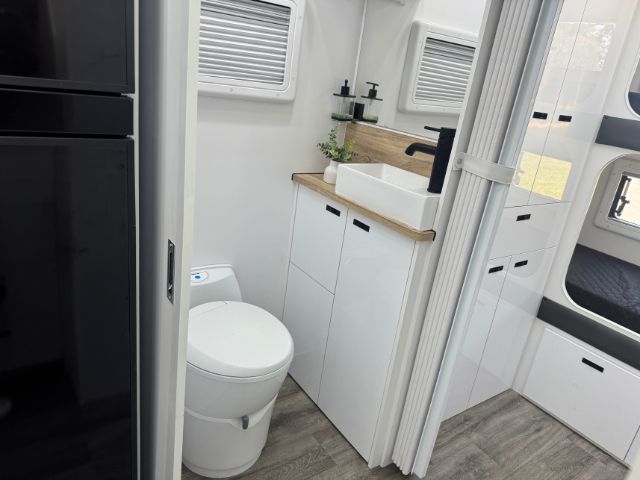

  • Thetford swiveling toilet & cassette
  • External shower
  • 2 x 95-litre water tanks
  • Washing machine
  • Gray Water Tank

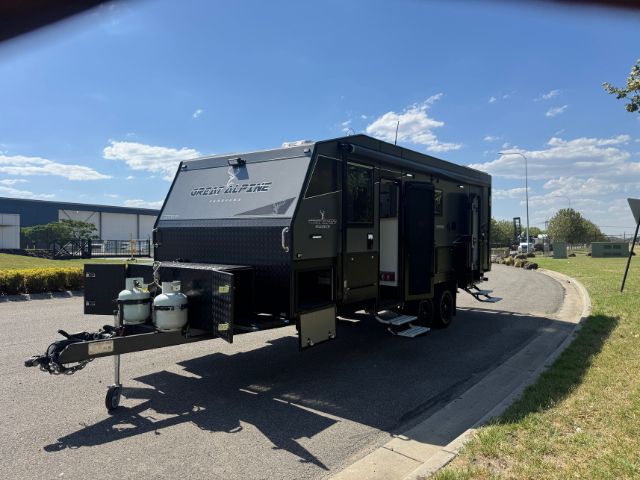

  • 2 x 9 KG gas bottles
  • 28 litre Swift gas & electric hot water service
  • 2 x Lockable water filler
  • Mains pressure inlet
  • Wastewater to common outlet
  • 12V water pump
  • Tap on A-frame
  • Black Pack
  • 2 X water tank gauge

  • 3 x 230 W solar panels
  • 2 x 200 AMP Lithium Battery
  • Bell air reverse cycle air conditioner
  • 12V master switch
  • Victron charger with Victron components
  • 12-pin flat trailer plug with fridge operation
  • 12v Anderson plug for accelerated charging
  • Furion Stereo
  • 24” FHD LEDTV
  • Gree Air A/C
  • 12V master switch
  • 2-way electrical circuit – master bedroom to toilet
  • 2 x 12v exhaust fans
  • Power points throughout
  • 227 liters Thetford Compressor fridge/freezer
  • 2700 W Inverter

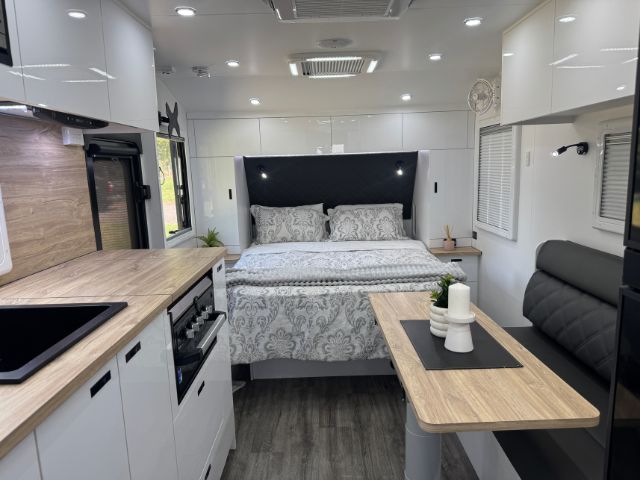

  • Queen size bed with inner spring mattress
  • Full Ensuite with separate shower & Toilet
  • Straight seating in soft vinyl with hand-stitched upholstery
  • Double-glazed windows with inbuilt privacy & fly screens
  • 24” Google TV
  • 2 x LED skylights

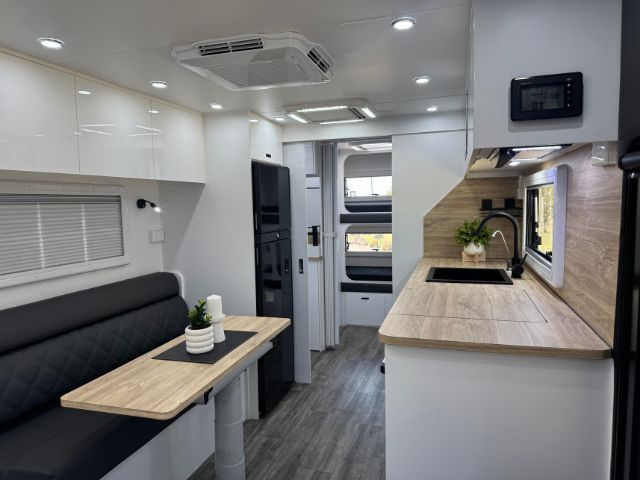

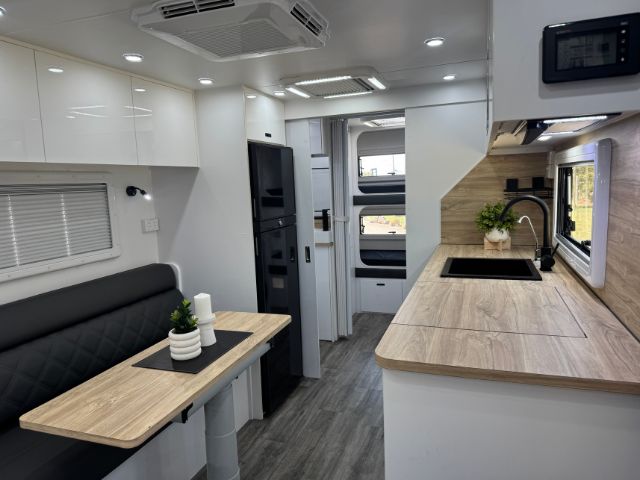

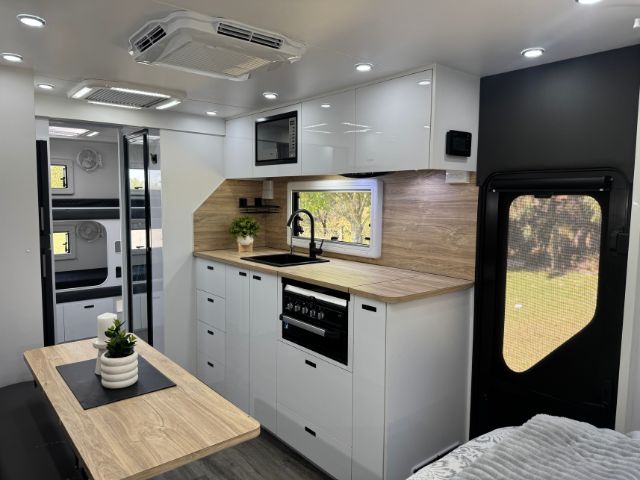

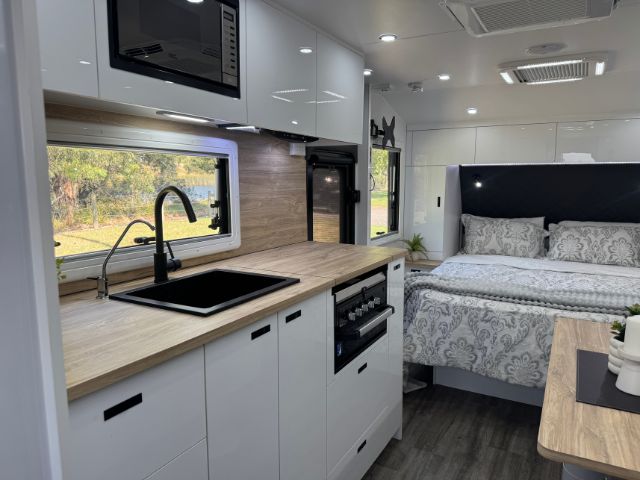

  • Fully integrated kitchen with ball-bearing runner drawers
  • Push button catches
  • Pantry cupboard
  • Bathroom pack (towel rail & toilet roll holder)
  • Ceramic ensuite vanity basin Internal
  • LED lights Reading lights to all beds and dinette.
  • Lift Up queen bed on struts with underneath storage.
  • Foam mattress to bunks.
  • TV swivel bracket
  • Laminated bench tops
  • Smoke detector and fire extinguisher
  • Queen Bed Side Pigeonholes
  • USB Points to All Beds
  • Slide out Pantry
  • 12v Fans

  • 18ft Roll out awning (with centre support bracket)
  • Triple lock door with fly screen
  • Large toolbox
  • Reverse camera with 6” monitor
  • Double-glazed windows
  • 2 x LED skylight hatches
  • External picnic table
  • Winegard antenna
  • External gas bayonet
  • 2 x external LED lights
  • LED tail lights
  • Front and Rear Work Light
  • External speakers
  • External 240V point
  • External 12V point
  • Pull Out Step
  • 2 main entrance doors
  • External door handle light
  • Chrome grab handles

  • Aluminum frame
  • One piece fiberglass roof
  • Honeycomb flooring
  • Flat finish alicom panel
  • Insulated walls and roof
  • Steel H frame to A/C for added strength.
  • 3.2mm white stipple PVC ply
  • One-piece moulded shower
  • Composite panel inside shower partition (no ply)
  • All furniture stapled and screwed for extra strength

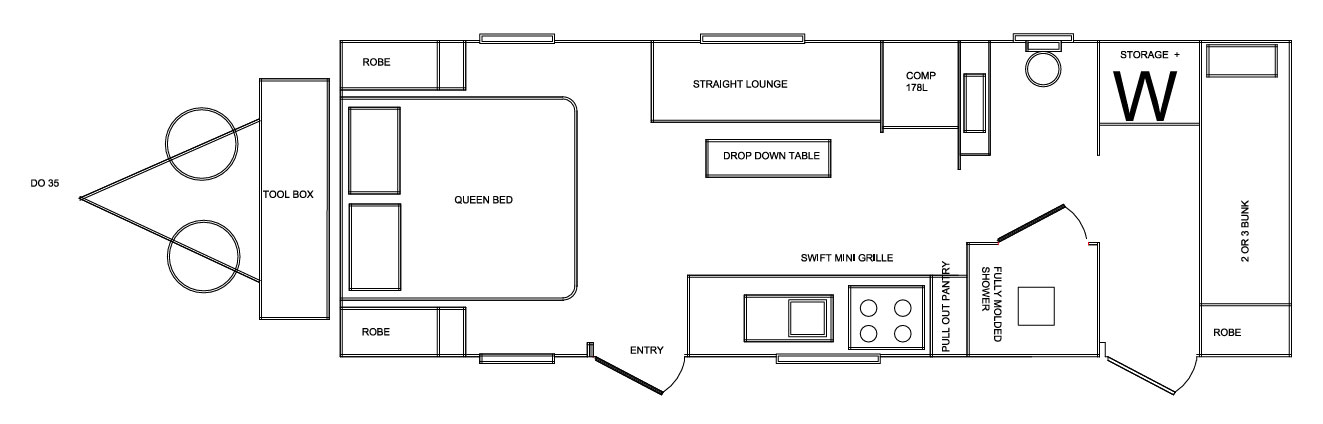

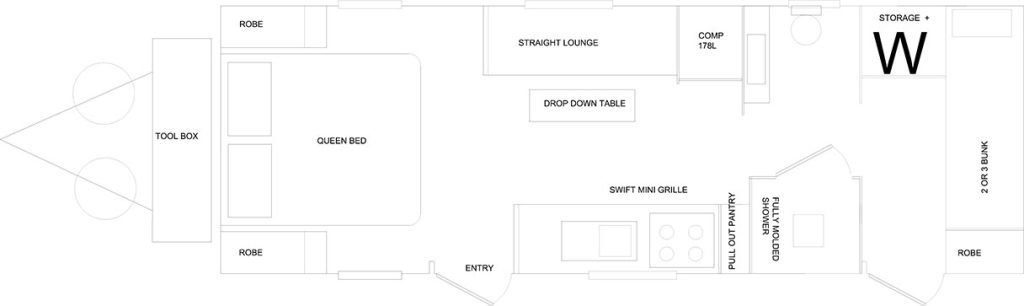

Floor Plans

STANDARD TOURING VAN WEIGHTS & DIMENSIONS
CABIN LENGTH: 22 FT
OVERALL LENGTH: 8.3 m
WIDTH: 7.8FT (2.4M)
HEIGHT: 9.67FT (2.95M)
INTERNAL HEIGHT: 6.47FT (1.97M)
TARE: 2920KG (APP)
ATM: 3500KG (APP)
BALL: 200KG (APP)
GTM: 3500 KG(APP)
PAYLOAD: 580 KG (APP)
